HTTP/SSE Transport Mode

Starting with version 1.0.7, Playwright MCP Server supports HTTP/SSE (Server-Sent Events) transport mode in addition to the standard stdio mode. This enables new deployment scenarios and use cases.

Overview

The HTTP/SSE transport allows the MCP server to run as a standalone HTTP server, enabling:

Remote server deployments
Multiple concurrent client connections
Better integration with certain IDEs (e.g., VS Code)
Health monitoring and debugging endpoints
Background service operation
DRY-compliant implementation for maximum maintainability

Transport Modes Comparison

Feature	stdio Mode	HTTP/SSE Mode
Default	✅ Yes	❌ No
Claude Desktop	✅ Supported	⏳ Coming Soon
VS Code Copilot	✅ Supported	✅ Supported
Remote Deployment	❌ No	✅ Yes
Multiple Clients	❌ No	✅ Yes
Health Endpoint	❌ No	✅ Yes
Setup Complexity	Simple	Medium

Quick Start

Starting the HTTP Server

Recommended: Using npx (Version 1.0.9+)

npx @executeautomation/playwright-mcp-server --port 8931

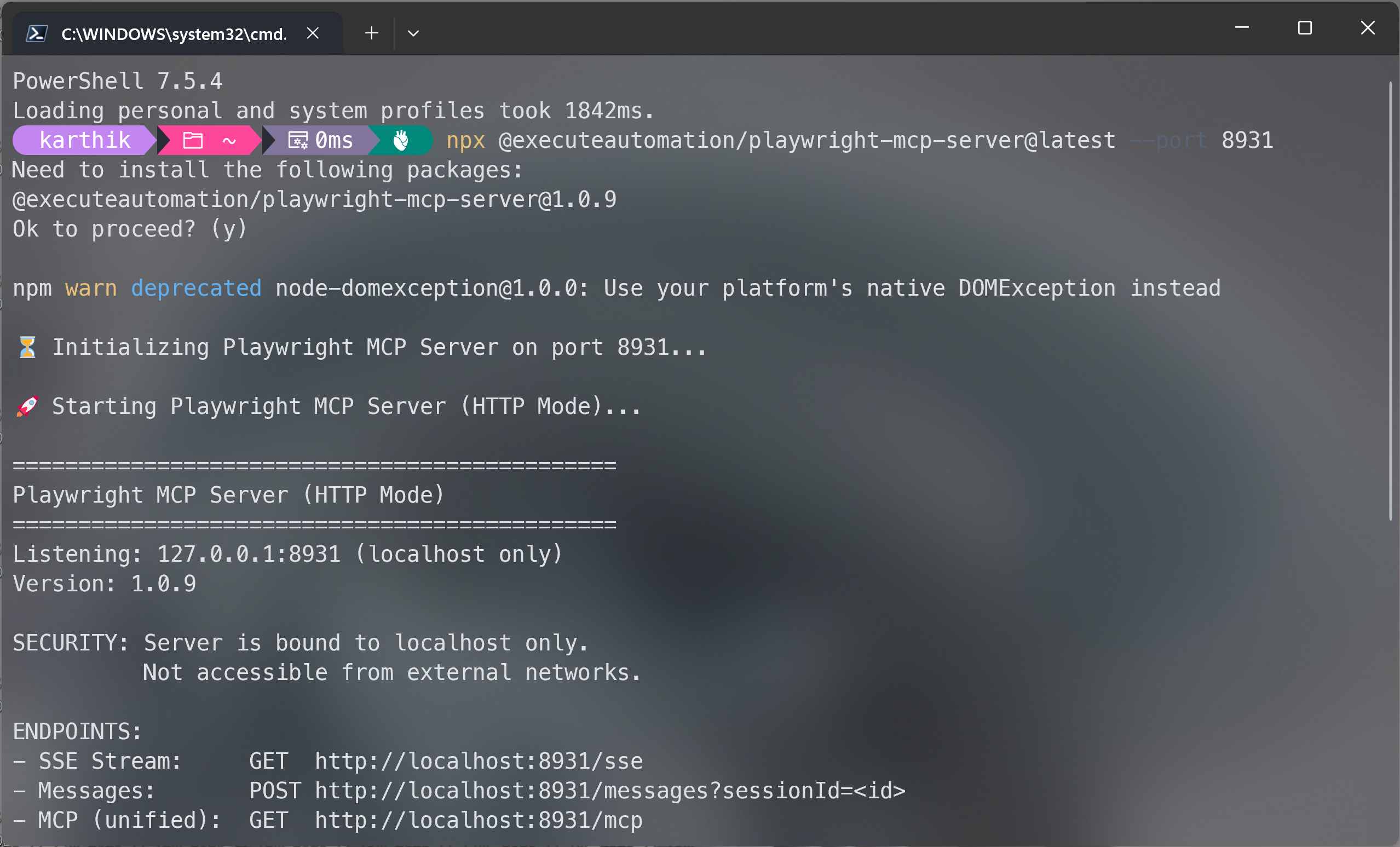

Standalone Server

Version Requirement

npx support requires version 1.0.9 or later. If you're using an older version, you'll need to use global installation (see below).

Alternative: Global Installation

If you prefer global installation or are using version 1.0.8 or earlier:

# Install globally
npm install -g @executeautomation/playwright-mcp-server

# Run the server
playwright-mcp-server --port 8931

Which method to use?

npx (recommended): Always uses the latest version, no installation needed
Global install: Faster startup, uses specific installed version

Troubleshooting npx

If npx doesn't show console output (versions < 1.0.9):

# Option 1: Update to latest version
npx @executeautomation/playwright-mcp-server@latest --port 8931

# Option 2: Use global installation instead
npm install -g @executeautomation/playwright-mcp-server
playwright-mcp-server --port 8931

Server Output

When started successfully, you'll see:

⏳ Initializing Playwright MCP Server on port 8931...

🚀 Starting Playwright MCP Server (HTTP Mode)...

==============================================
Playwright MCP Server (HTTP Mode)
==============================================
Listening: 127.0.0.1:8931 (localhost only)
Version: 1.0.9

SECURITY: Server is bound to localhost only.
          Not accessible from external networks.

ENDPOINTS:
- SSE Stream:     GET  http://localhost:8931/sse
- Messages:       POST http://localhost:8931/messages?sessionId=<id>
- MCP (unified):  GET  http://localhost:8931/mcp
- MCP (unified):  POST http://localhost:8931/mcp?sessionId=<id>
- Health Check:   GET  http://localhost:8931/health

CLIENT CONFIGURATION:
{
  "mcpServers": {
    "playwright": {
      "url": "http://localhost:8931/mcp",
      "type": "http"
    }
  }
}
==============================================

Monitoring HTTP server listening on port 55123
Health check: http://localhost:55123/health
Metrics: http://localhost:55123/metrics

No Output Visible?

If you don't see the console output above:

Check your version: Run npx @executeautomation/playwright-mcp-server@latest --port 8931
Use global install: npm install -g @executeautomation/playwright-mcp-server then playwright-mcp-server --port 8931
Verify server is running: curl http://localhost:8931/health (should return {"status":"ok"})

Client Configuration

For VS Code GitHub Copilot

Step 1: Start the HTTP server

playwright-mcp-server --port 8931

Step 2: Add to VS Code settings (.vscode/settings.json or User Settings):

{
  "github.copilot.chat.mcp.servers": {
    "playwright": {
      "url": "http://localhost:8931/mcp",
      "type": "http"
    }
  }
}

IMPORTANT

The "type": "http" field is required for HTTP/SSE transport. Without it, the client will not connect properly.

Step 3: Reload VS Code

For Claude Desktop

warning

Claude Desktop currently requires stdio mode. Use the standard configuration instead:

{
  "mcpServers": {
    "playwright": {
      "command": "npx",
      "args": ["-y", "@executeautomation/playwright-mcp-server"]
    }
  }
}

HTTP transport support for Claude Desktop is expected in future updates.

For Custom MCP Clients

{
  "mcpServers": {
    "playwright": {
      "url": "http://localhost:8931/mcp",
      "type": "http"
    }
  }
}

Required Fields:

url - The HTTP endpoint URL
type - Must be "http" for HTTP/SSE transport

Without "type": "http", the client may attempt stdio mode and fail to connect.

Available Endpoints

Health Check

curl http://localhost:8931/health

Response:

{
  "status": "ok",
  "version": "1.0.7",
  "activeSessions": 0
}

SSE Stream (Legacy)

curl -N http://localhost:8931/sse

Establishes an SSE connection and returns the endpoint for sending messages.

MCP Unified Endpoint (Recommended)

curl -N http://localhost:8931/mcp

The unified endpoint that handles both SSE streaming and message sending.

Monitoring Metrics

The monitoring system runs on PORT+1:

curl http://localhost:8932/health
curl http://localhost:8932/metrics

Command-Line Options

playwright-mcp-server [OPTIONS]

OPTIONS:
  --port <number>    Run in HTTP mode on the specified port
  --help, -h         Show help message

EXAMPLES:
  # Run in stdio mode (default)
  playwright-mcp-server

  # Run in HTTP mode on port 8931
  playwright-mcp-server --port 8931

  # Run in HTTP mode on custom port
  playwright-mcp-server --port 3000

Use Cases

1. Remote Server Deployment

Run the server on a remote machine:

# On remote server
ssh user@remote-server
playwright-mcp-server --port 8931

# Configure client to connect remotely
{
  "mcpServers": {
    "playwright": {
      "url": "http://remote-server:8931/mcp"
    }
  }
}

2. Background Service

Run as a persistent background service:

# Using nohup
nohup playwright-mcp-server --port 8931 > server.log 2>&1 &

# Check status
curl http://localhost:8931/health

# View logs
tail -f server.log

3. Docker Deployment

FROM node:20

WORKDIR /app

RUN npm install -g @executeautomation/playwright-mcp-server

EXPOSE 8931

CMD ["playwright-mcp-server", "--port", "8931"]

Run the container:

docker build -t playwright-mcp .
docker run -p 8931:8931 playwright-mcp

4. Multiple Concurrent Clients

HTTP mode supports multiple clients simultaneously:

# Start server
playwright-mcp-server --port 8931

# Client 1 connects
# Client 2 connects
# Client 3 connects

# Check active sessions
curl http://localhost:8931/health
# Returns: {"status":"ok","activeSessions":3}

Session Management

Each client connection creates a unique session:

Session ID: Automatically generated UUID
Isolation: Each session has its own browser instance
Cleanup: Automatic cleanup on connection close
Monitoring: Track active sessions via health endpoint

Example Session Flow

Client connects → GET /mcp
Server responds → Returns session endpoint
Client sends messages → POST /mcp?sessionId=<id>
Server processes → Returns results via SSE
Client disconnects → Session automatically cleaned up

Testing HTTP Mode

Automated Testing

# Clone the repository
git clone https://github.com/executeautomation/mcp-playwright.git
cd mcp-playwright

# Build
npm run build

# Run automated tests
./test-http-mode.sh

The test script validates:

✅ Server startup
✅ Health endpoint
✅ SSE connections
✅ Error handling
✅ Session management
✅ Monitoring endpoints

Manual Testing

# Terminal 1: Start server
playwright-mcp-server --port 8931

# Terminal 2: Test endpoints
curl http://localhost:8931/health
curl -N http://localhost:8931/mcp | head -5
curl http://localhost:8932/metrics

Using MCP Inspector

# Start server
playwright-mcp-server --port 8931

# Test with official MCP inspector
npx @modelcontextprotocol/inspector http://localhost:8931/mcp

Monitoring and Debugging

Health Monitoring

The /health endpoint provides real-time status:

curl http://localhost:8931/health | jq

Monitoring points:

Server status
Version information
Active session count
Response time

Metrics Collection

The monitoring server uses dynamic port allocation to avoid conflicts. Check the console output for the actual port:

# Server output shows:
# Monitoring HTTP server listening on port 59055
# Health check: http://localhost:59055/health
# Metrics: http://localhost:59055/metrics

Access detailed metrics:

# Use the port from server output
curl http://localhost:59055/metrics | jq

Available metrics:

Request counts
Response times
Error rates
Memory usage
System health

Note: The monitoring port is dynamically allocated (using port 0) to prevent conflicts with other services.

Logs

Server logs are written to stdout/stderr in JSON format:

# View logs in real-time
tail -f server.log

# Filter by level
grep '"level":"error"' server.log

# Track specific session
grep '"sessionId":"abc-123"' server.log

# Monitor all incoming requests
grep '"message":"Incoming request"' server.log

Log Levels:

info - Normal operations (requests, connections, transport events)
warn - Potential issues (unknown sessions, missing parameters)
error - Failures (connection errors, handler exceptions)

Key Log Messages:

// Client connects
{"level":"info","message":"Incoming request","context":{"method":"GET","path":"/mcp"}}
{"level":"info","message":"SSE connection request received","context":{"endpoint":"/mcp"}}
{"level":"info","message":"Transport registered","context":{"sessionId":"...","activeTransports":1}}

// Client sends message
{"level":"info","message":"Incoming request","context":{"method":"POST","path":"/mcp"}}
{"level":"info","message":"POST message received","context":{"sessionId":"...","availableTransports":[...]}}

// Client disconnects
{"level":"info","message":"SSE connection closed","context":{"sessionId":"...","endpoint":"/mcp"}}
{"level":"info","message":"Transport unregistered","context":{"activeTransports":0}}

Code Quality

The HTTP server implementation follows software engineering best practices:

DRY Principle (Don't Repeat Yourself)

All endpoint logic is centralized in reusable helper functions:

Before (with duplication):

// /sse endpoint - 26 lines of code
app.get('/sse', async (req, res) => {
  // SSE connection logic...
});

// /mcp endpoint - 26 lines of identical code
app.get('/mcp', async (req, res) => {
  // Same SSE connection logic...
});

After (DRY compliant):

// Reusable helper - 29 lines total
const handleSseConnection = async (endpoint, messageEndpoint, req, res) => {
  // SSE connection logic (single source of truth)
};

// Simple endpoint definitions - 2 lines total
app.get('/sse', (req, res) => handleSseConnection('/sse', '/messages', req, res));
app.get('/mcp', (req, res) => handleSseConnection('/mcp', '/mcp', req, res));

Benefits

40% code reduction in endpoint handlers
Zero duplication - single source of truth
Consistent behavior - all endpoints work the same way
Easy maintenance - update once, applies everywhere
Lower bug risk - no chance of inconsistent implementations

Maintainability

The implementation prioritizes long-term maintainability:

Clear separation of concerns
Reusable, testable functions
Comprehensive error handling
Context-aware logging
Type-safe TypeScript implementation

Architecture

Components

┌─────────────────────┐
│   HTTP Server       │
│   (Express)         │
└──────────┬──────────┘
           │
    ┌──────┴──────┐
    │             │
┌───▼───┐    ┌───▼────┐
│  SSE  │    │ Health │
│ Trans │    │  Check │
│ port  │    │        │
└───┬───┘    └────────┘
    │
┌───▼────────────────┐
│  MCP Server Core   │
│  - Request Handler │
│  - Tool Handler    │
│  - Browser Manager │
└────────────────────┘

Transport Layer

The implementation uses MCP SDK's native SSEServerTransport with DRY-compliant helper functions:

import { SSEServerTransport } from "@modelcontextprotocol/sdk/server/sse.js";

// Reusable helper function handles all SSE connections
const handleSseConnection = async (endpoint, messageEndpoint, req, res) => {
  const transport = new SSEServerTransport(messageEndpoint, res);
  await server.connect(transport);
  // ... session management, logging, error handling
};

// All endpoints use the same logic
app.get('/sse', (req, res) => handleSseConnection('/sse', '/messages', req, res));
app.get('/mcp', (req, res) => handleSseConnection('/mcp', '/mcp', req, res));

Benefits of this approach:

Single source of truth for endpoint logic
Consistent behavior across all endpoints
Easy to maintain and update
Reduced code duplication (40% less code)
Lower bug risk

Session Lifecycle

Client Request
     ↓
GET /mcp
     ↓
Create Session
     ↓
Return Session ID
     ↓
Client POSTs Messages
     ↓
Server Processes via SSE
     ↓
Connection Closes
     ↓
Cleanup Session

Security Considerations

IMPORTANT SECURITY NOTE

The server binds to 127.0.0.1 (localhost only) by default. This is a critical security feature that prevents external access.

Network Binding

SECURITY: The server binds to 127.0.0.1 (localhost only):

✅ Accessible only from the local machine
✅ Not exposed to external networks
✅ Secure by default
✅ Suitable for local development
✅ No accidental external exposure
✅ Protects against unauthorized access

Why This Matters:

Prevents external machines from accessing your MCP server
Protects browser automation capabilities from network exposure
Ensures no accidental exposure in shared network environments
Follows security best practices for local development tools

Remote Access (Secure Method)

DO NOT modify the code to bind to 0.0.0.0. Instead, use SSH tunneling:

# On the remote server (server still binds to localhost)
playwright-mcp-server --port 8931

# On your local machine (create secure tunnel)
ssh -L 8931:localhost:8931 user@remote-server

# Now access securely via localhost:8931

Benefits of SSH Tunneling:

✅ Encrypted connection
✅ Authentication required
✅ Server stays bound to localhost
✅ Industry standard practice

Production Deployment

For production environments, use a reverse proxy:

# nginx example
server {
    listen 80;
    server_name your-domain.com;

    location /mcp {
        proxy_pass http://127.0.0.1:8931;
        # Add authentication
        auth_basic "MCP Server";
        auth_basic_user_file /etc/nginx/.htpasswd;
    }
}

Benefits:

✅ Server stays on localhost
✅ Add authentication layer
✅ Enable SSL/TLS
✅ Implement rate limiting
✅ Better logging and monitoring

Example: SSH Tunnel

# On local machine
ssh -L 8931:localhost:8931 user@remote-server

# Server now accessible at localhost:8931

Troubleshooting

Debugging Tools

Version 1.0.7 includes comprehensive logging to help diagnose issues:

Request Logging: Every HTTP request is logged with:

Method (GET, POST)
Path and URL
Query parameters
Headers (Accept, Content-Type)

Session Tracking: Monitor SSE sessions with:

Transport registration logs
Active transport counts
Session ID tracking
Connection close events

Example Debug Output:

{"level":"info","message":"Incoming request","context":{"method":"GET","path":"/mcp"}}
{"level":"info","message":"Transport registered","context":{"sessionId":"abc-123","activeTransports":1}}
{"level":"info","message":"POST message received","context":{"sessionId":"abc-123","endpoint":"/mcp"}}

Common Issues

Issue: npx Shows No Console Output

Symptom: Running npx @executeautomation/playwright-mcp-server --port 8931 shows no output or seems to hang.

Cause: Versions prior to 1.0.9 had an output buffering issue with npx.

Solutions:

Update to latest version (recommended):

npx @executeautomation/playwright-mcp-server@latest --port 8931

Use global installation:

npm install -g @executeautomation/playwright-mcp-server
playwright-mcp-server --port 8931

Verify server is actually running:
```
# Even without visible output, the server might be running
curl http://localhost:8931/health
```
If this returns {"status":"ok","version":"1.0.x","activeSessions":0}, the server is running successfully despite no console output.

Why this happens:

Node.js buffers console.log() output when stdout is not a TTY
Fixed in version 1.0.9 by using process.stdout.write()
Global installation doesn't have this issue

Issue: "No transport found for sessionId"

Symptom: Client receives 400 error with message about missing transport.

Causes:

GET request to establish SSE connection didn't complete
Client using stale/cached sessionId
Server restarted but client kept old sessionId

Solution:

# Check logs for "Transport registered" - should appear before POST messages
# Look for this sequence:
# 1. "Incoming request" GET /mcp
# 2. "SSE connection request received"
# 3. "Transport registered" with sessionId
# 4. "POST message received" with same sessionId

# If sequence is wrong, client needs to reconnect

Port Already in Use

# Check what's using the port
lsof -i :8931

# Use a different port
playwright-mcp-server --port 9000

Connection Refused

# Verify server is running
ps aux | grep playwright-mcp-server

# Check server logs
tail -f server.log

# Test with curl
curl -v http://localhost:8931/health

SSE Connection Issues

Check if SSE stream is established:

# Should show continuous stream, not immediate close
curl -N http://localhost:8931/mcp

# Look for:
# event: endpoint
# data: /mcp?sessionId=<uuid>

Verify session is registered:

# In server logs, look for:
grep "Transport registered" server.log

# Should show sessionId matching what client uses

Browser Issues

# Install Playwright browsers
npx playwright install chromium

# For headless mode on servers without display
export DISPLAY=:99

Session Not Found

This error occurs when:

Session has expired
Server was restarted
Client used invalid session ID

Solution: Reconnect to establish a new session.

Performance Considerations

Concurrent Connections

The server handles multiple concurrent clients efficiently:

Each session is isolated
Browser instances are managed per session
Automatic resource cleanup

Resource Limits

Monitor resource usage:

# Check memory usage
curl http://localhost:8932/metrics | jq '.memory'

# Check active sessions
curl http://localhost:8931/health | jq '.activeSessions'

Migration Guide

From stdio to HTTP Mode

Before (stdio):

{
  "mcpServers": {
    "playwright": {
      "command": "npx",
      "args": ["-y", "@executeautomation/playwright-mcp-server"]
    }
  }
}

After (HTTP):

Start the server:

playwright-mcp-server --port 8931

Update configuration:

{
  "mcpServers": {
    "playwright": {
      "url": "http://localhost:8931/mcp"
    }
  }
}

Backward Compatibility

stdio mode remains the default
All existing tools work in both modes
No breaking changes to API
Configurations are independent

FAQ

Q: Should I use npx or global installation?

Use npx (recommended):

✅ Always uses latest version
✅ No installation needed
✅ Easy to update
⚠️ Requires version 1.0.9+ for console output

Use global installation:

✅ Faster startup (no download)
✅ Works with all versions
✅ More predictable (pinned version)
⚠️ Needs manual updates

Quick test which works for you:

# Try npx first
npx @executeautomation/playwright-mcp-server@latest --port 8931

# If no output, use global install
npm install -g @executeautomation/playwright-mcp-server
playwright-mcp-server --port 8931

Q: Should I use HTTP or stdio mode?

Use stdio mode if:

You're using Claude Desktop
You want simpler setup
You're running locally only

Use HTTP mode if:

You need remote access
You want multiple clients
You need health monitoring
You're using VS Code Copilot

Q: Can I run both modes simultaneously?

Yes! Run them on different ports or different machines.

Q: How do I secure HTTP mode?

Consider:

SSH tunneling for remote access
Reverse proxy with authentication
Network firewall rules
HTTPS/TLS certificates

Q: What's the performance difference?

Both modes have similar performance. HTTP mode has slightly higher overhead due to HTTP protocol, but it's negligible for typical use cases.

Additional Resources

Support

If you encounter issues:

Check the troubleshooting section
Run the automated test: ./test-http-mode.sh
Review server logs
Open an issue on GitHub

Version Added: 1.0.7
Protocol Version: MCP 2024-11-05+
Status: Stable

Overview​

Transport Modes Comparison​

Quick Start​

Starting the HTTP Server​

Recommended: Using npx (Version 1.0.9+)​

Alternative: Global Installation​

Troubleshooting npx​

Server Output​

Client Configuration​

For VS Code GitHub Copilot​

For Claude Desktop​

For Custom MCP Clients​

Available Endpoints​

Health Check​

SSE Stream (Legacy)​

MCP Unified Endpoint (Recommended)​

Monitoring Metrics​

Command-Line Options​

Use Cases​

1. Remote Server Deployment​

2. Background Service​

3. Docker Deployment​

4. Multiple Concurrent Clients​

Session Management​

Example Session Flow​

Testing HTTP Mode​

Automated Testing​

Manual Testing​

Using MCP Inspector​

Monitoring and Debugging​

Health Monitoring​

Metrics Collection​

Logs​

Code Quality​

DRY Principle (Don't Repeat Yourself)​

Benefits​

Maintainability​

Architecture​

Components​

Transport Layer​

Session Lifecycle​

Security Considerations​

Network Binding​

Remote Access (Secure Method)​

Production Deployment​

Example: SSH Tunnel​

Troubleshooting​

Debugging Tools​

Common Issues​

Issue: npx Shows No Console Output​

Issue: "No transport found for sessionId"​

Port Already in Use​

Connection Refused​

SSE Connection Issues​

Browser Issues​

Session Not Found​

Performance Considerations​

Concurrent Connections​

Resource Limits​

Migration Guide​

From stdio to HTTP Mode​

Backward Compatibility​

FAQ​

Q: Should I use npx or global installation?​

Q: Should I use HTTP or stdio mode?​

Q: Can I run both modes simultaneously?​

Q: How do I secure HTTP mode?​

Q: What's the performance difference?​

Additional Resources​

Support​
